Ultrasonic Aspirators - Söring

To bring this advanced surgical technology to the UK we have partnered with Söring, a German company who have spent over 40 years designing and manufacturing products for ultrasonic neurosurgery and spinal surgery.

As specialists in the field of ultrasonic resection and ablation of tissue, their highly innovative product range has been optimised in co-operation with clinical staff to achieve market-leading levels of customer satisfaction and patient well-being.

To speak to one of our Söring specialists, please call 01782 637009. Alternatively, send an email by clicking here.

​

P7 - logo & Pic







NEW - Söring Ultrasonic Surgical System​

​



The new SUU-900 Ultrasonic Unit and wireless foot switch are compact and quiet, with clear operation and a modern touch display, which makes working with the ultrasonic unit easy and comfortable.​

P7 SUU900 Pic 1



High level of safety and control during resection on critical structures and smooth processes in the OR.

The Effect-Control dial allows the surgical team to quickly and precisely adjust the settings on the ultrasonic unit. This promotes smooth interaction.

P2 SUU900 pic 2

​

The Ultrasonic Unit has 3 operating elements

Modes
There are four modes for neurosurgery. Each mode only contains setting options that are suitable for the selected tissue consistency. This makes it easy to find a suitable starting setting and also make any further adjustments to enable optimised resection results.

Effect-Control
The removal rate is adjusted for the selected tissue consistency (mode) using the Effect-Control. The starting setting is a medium removal rate in each
mode (effect level = 4). If a higher removal rate is required, this is set with the Effect-Control dial (e.g. effect level = 9).

Safety Level
When the Safety Level is on, the removal rate is greatly reduced and a limitation of the voltage ensures that resection can be carried out with a high level of safety. The Safety Level can be activated via a button on the touch screen or alternatively via a button on the foot switch.





P7 Pic 3









Comfortable to use for the surgical team. LEVICS and the ultrasonic unit offer many functions for easy handling.





- Large touch display with modern operating concept: Modes, Effect-Control and Safety Level



- Saving of individual setting preferences



- Small dimensions, low weight



- Precisely controlled, quiet aspiration pump



- Installation instructions with clear pictures



- Assembly with tubing cassette and automated preparation



​

P7 Pic 4





Micro Instruments for Neurosurgery

P7 - new LEVICS instruments pic

Open surgical and endoscopic ultrasonic resection

Söring's range of ultrasonic instruments are designed to help ensure that neurosurgeons can proceed efficiently and precisely. With an operating frequency of 35 kHz, the product allows effective tumour resection of varying consistency, plus fine tumour preparation in the vicinity of critical structures.

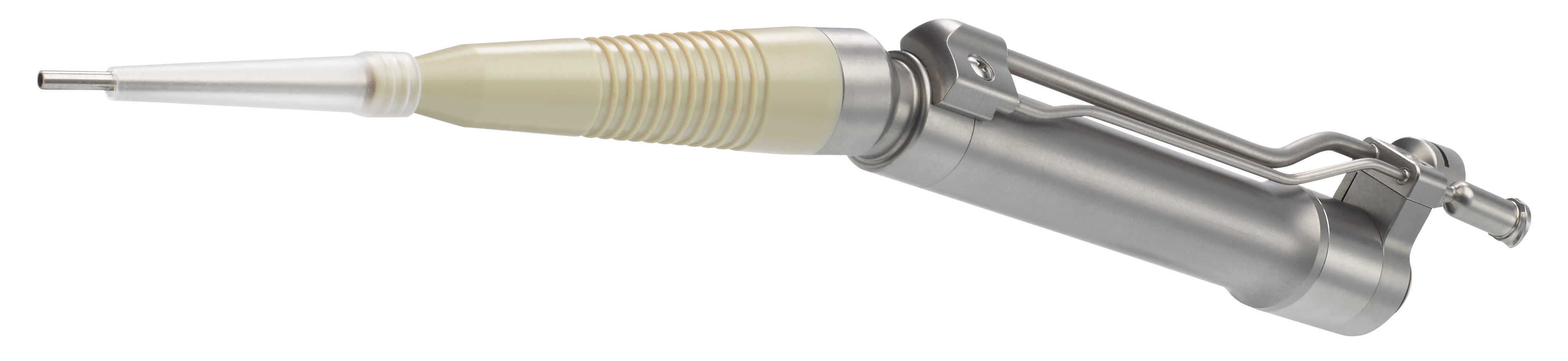

LEVICS Neurosurgical Aspiration Instrument

Characterised by excellent design, the new ultrasonic aspiration instrument has been developed for an accurate resection of intracranial and spinal tumours while preserving the surrounding structures as much as possible. Thanks to its integrated aspiration, tumour fragments are immediately removed.

The instrument impresses with its low weight, (reduced by 10% compared to the previous MS-Pen) which is particularly beneficial over long periods of surgery. In addition, the filigree and angled design of the instrument body ensures an optimum view of the surgical field.



p7 - pic 2

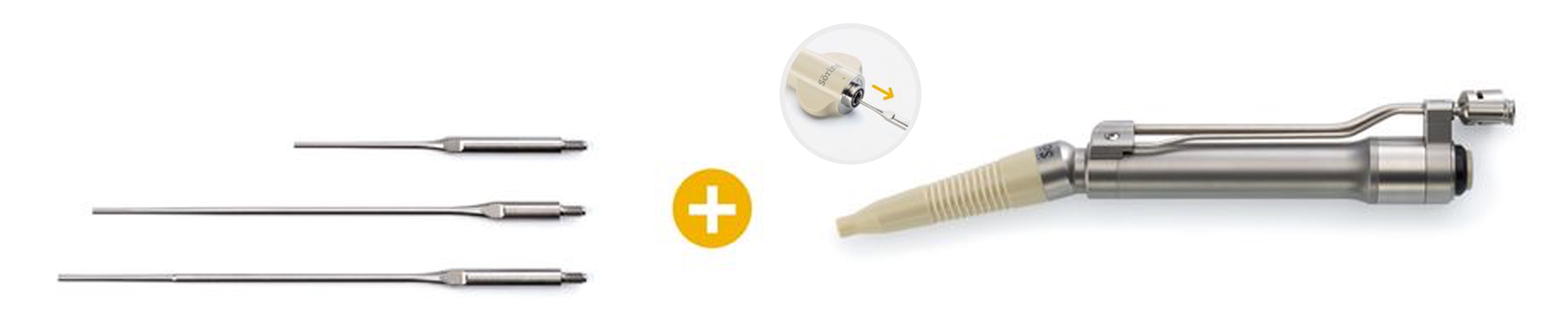

The LEVICS aspiration instrument features a range of new single-use and reusable sonotrodes with different lengths, diameters and ends (standard, bevelled & notched) to allow optimised treatment of a range of different lesions. These sterile sonotrodes are CE marked and can be easily mounted and replaced in seconds via the intuitive ‘Click and Start’ torque wrench.​





p7 - bullet point list 1

Key Benefits

  • 10 % reduced instrument weight* supports long procedures.
  • Angled instrument body allows optimum view of the surgical field.
  • Efficient aspiration ensures a continuous workflow.
  • Simple combination of LEVICS with the multimodal intraoperative neuromonitoring (IONM) of inomed.

​

p7 - video 1 improved sonotrode spray

Enhanced Visibility - Minimal Spray

See for yourself in this short video demonstration - every sonotrode in the range now provides optimal visibility of the surgical field.

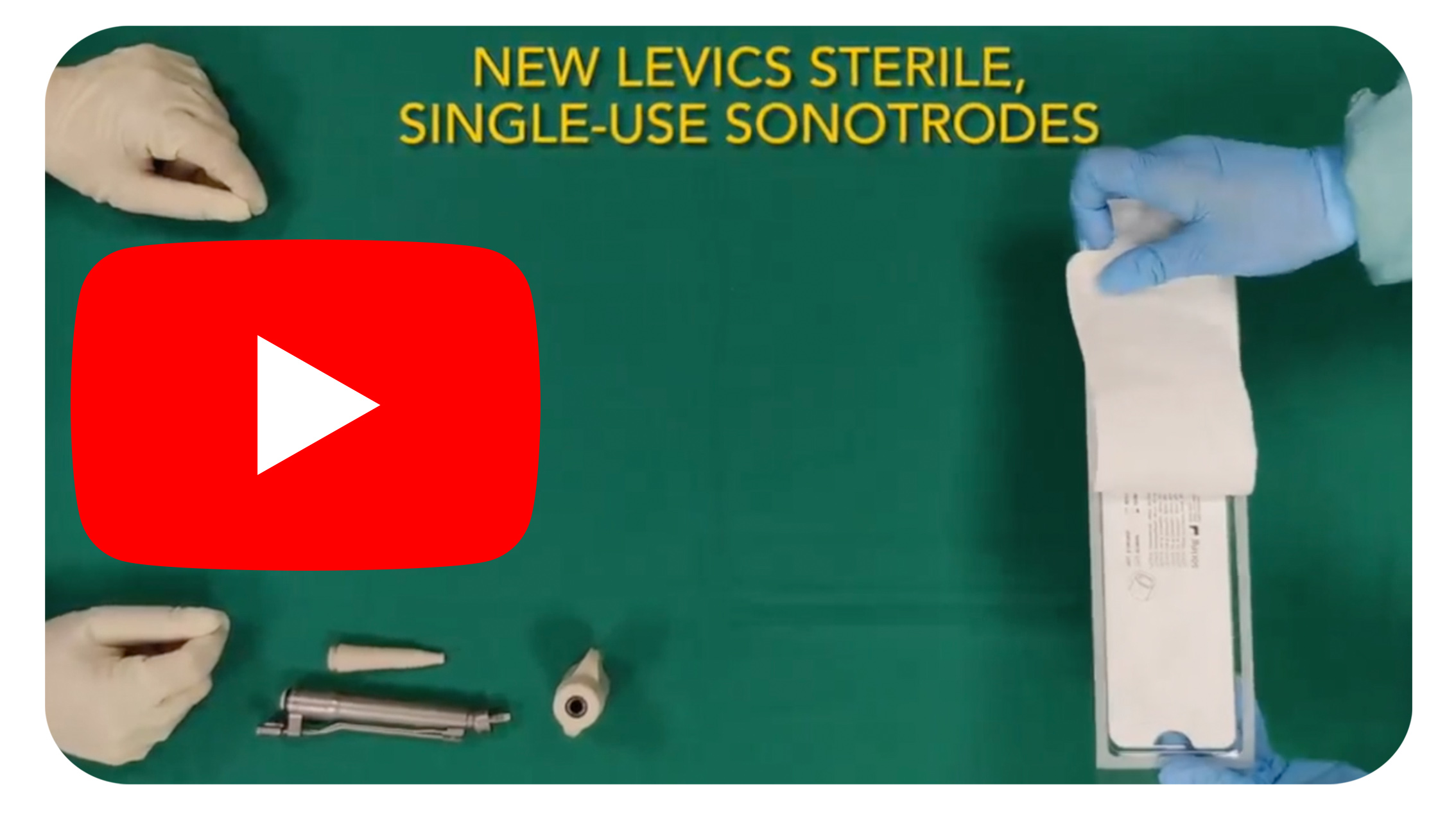

p7 - video 2 improved packaging

Easy to Access and Double Sterile Packaging

Each single use LEVICS sonotrode now comes in new, double sterile packed blister packaging (which includes the flue). This ensures easy, safe & fast assembly in theatre.

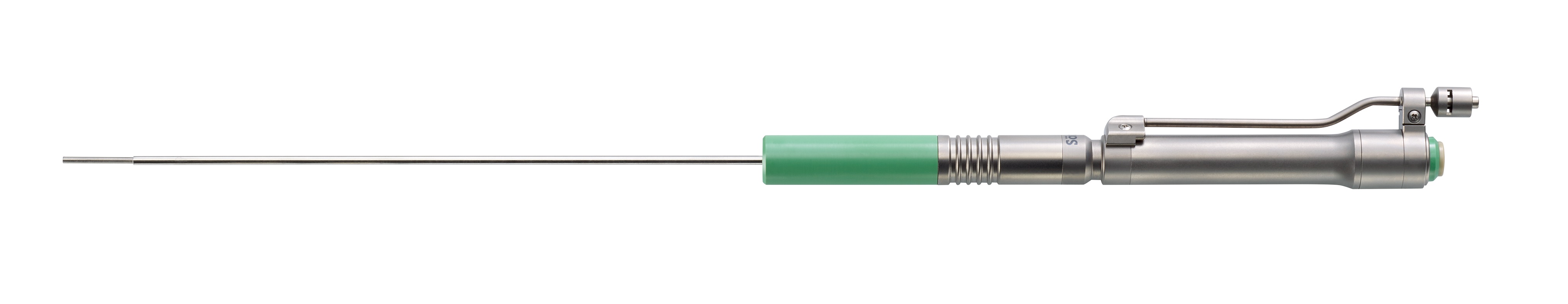

Endoscopic Micro instrument ENP​

p7 - pic 3

Unique resection of deep-seated tumours - when removing intra and paraventricular lesions, a minimally invasive approach may be favoured over open surgery. Söring's “Endoscopic Neurosurgical Pen (ENP)” is the world‘s only ultrasonic aspirator whose exceptionally long sonotrode is guided through the working channel of an endoscope, allowing deep-seated tumours of different consistencies to be fragmented and aspirated simultaneously.



ENP Ultrasonic Aspirator + AESCULAP® MINOP® InVent Neuroendoscopic System

P7 ENP Pic & text block 2

Resection of intraventricular tumours and cysts: advanced neuroendoscopy with ultrasonic aspiration

The ENP ultrasonic aspirator used with the AESCULAP® MINOP® InVent neuroendoscopic system offers an advanced technique for the resection of intraventricular tumours and cysts.

Endoscopic ultrasonic technique

  • Purely neuroendoscopic approach - resection simply via a burr hole.
  • Fast resection – tissue is simultaneously fragmented and aspirated.
  • Clear visibility – enabling continuous irrigation flow.
  • Safe instrument guidance - depth marking indicates when the sonotrode enters the endoscopic field of view.
  • Comfortable working - grooved and conically shaped handle improves the instrument guiding.
  • Working length of 268 mm.

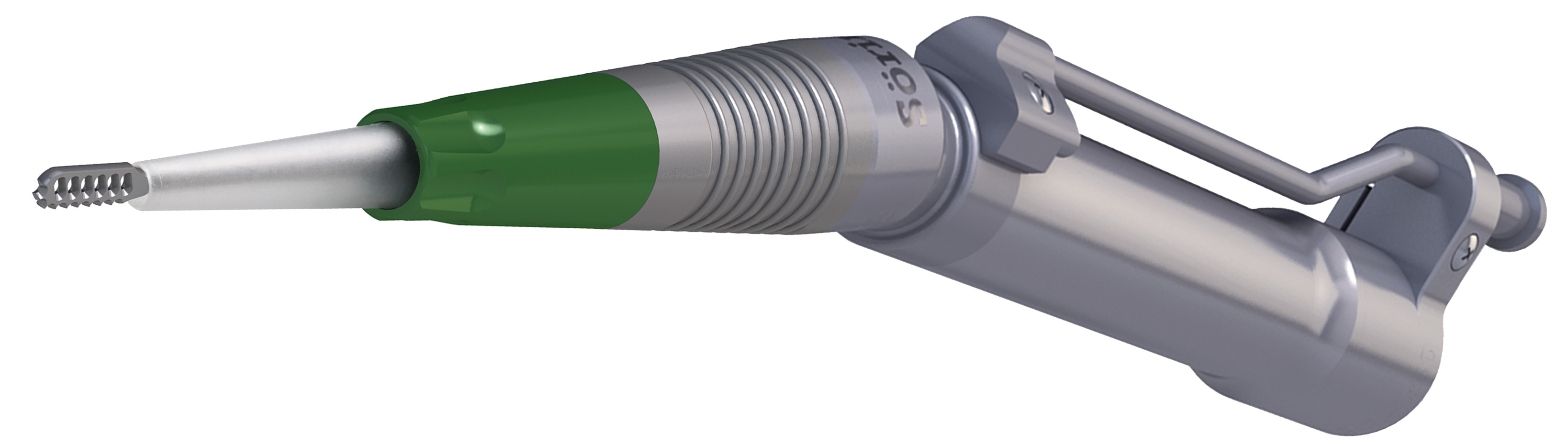

Spine Surgery with Ultrasonic Assisted Bone Instrument

Targeted Bone Resection

The ultrasonic-assisted bone instrument from Söring was developed specifically for the resection of bone and offers numerous advantages in spinal surgery, (decompression procedures etc.).

Non-rotating technology allows for a very precise surgical approach, allowing work close to critical spinal neurovascular structures such as dura mater. Additional pressure is avoided, which is extremely important when working in already tight spaces. Due to the longitudinal movement of the sonotrode tip there is also no risk of "grabbing".

Another great advantage compared to other instruments is that bone can be removed in individual pieces, as it is not ground. Removed material can be used further for fusion operations avoiding the need for artificial bone material or bone graft harvesting.

p7 - pic 4

Key Benefits

  • Single-use sonotrodes.
  • Various sonotrode geometries.
  • Simple, intuitive assembly.
  • Fully autoclavable instrument body.
  • Low instrument weight.
  • Integrated irrigation system.
  • Clear view of the surgical field thanks to ergonomic design.




LEVICS Ultrasonic Aspiration Merged with IONM​

Clinical outcome maximised. Safety optimised. Tumours located close to the corticospinal tract are very challenging to resect. When resecting the maximum extent of the tumour, functional structures need to be kept intact. To address this challenge two technologies were combined:

P7 Söring INOMED pic

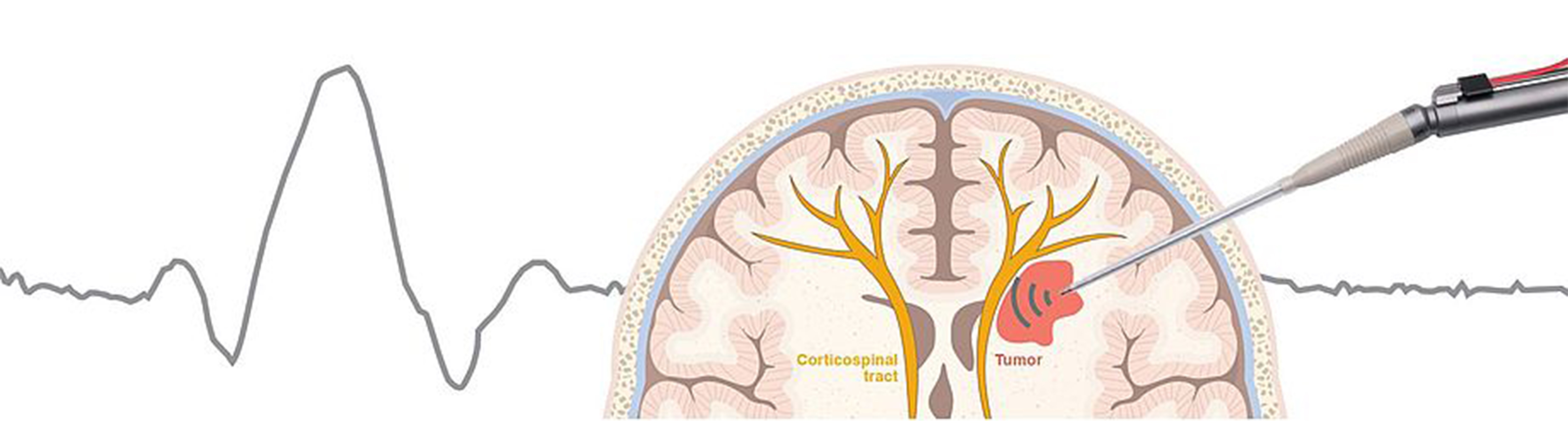

Higher accuracy and safer resection. The combination of LEVICS with IONM allows the surgeon to stimulate directly at the place of resection. Permanent acoustic feedback informs the surgeon about the distance to the corticospinal tract. This improves the accuracy of mapping and safety during tumour resection.

P7 INOMED diagram pic





P7 RS Ultrasonic Aspirators



Visit the Delta Resource Centre, where you can read & download more product details plus related information, (including clinical case studies where available).​

To speak to one of our Söring product specialists about any of the above systems, or to place an order, please call 01782 637009. Alternatively, email by clicking here.
